CL-6850 Online Residual Chlorine

Technical indicators:

1. Measuring range: residual chlorine: 0-20.00mg/L(ppm), temperature: 0~60°C.

2. Resolution: 0.01mg/L, 0.1°C

3. Accuracy: better than ±1% or ±0.01 mg/L, ±0.5°C

4. Manual/automatic temperature compensation (0~60°C)

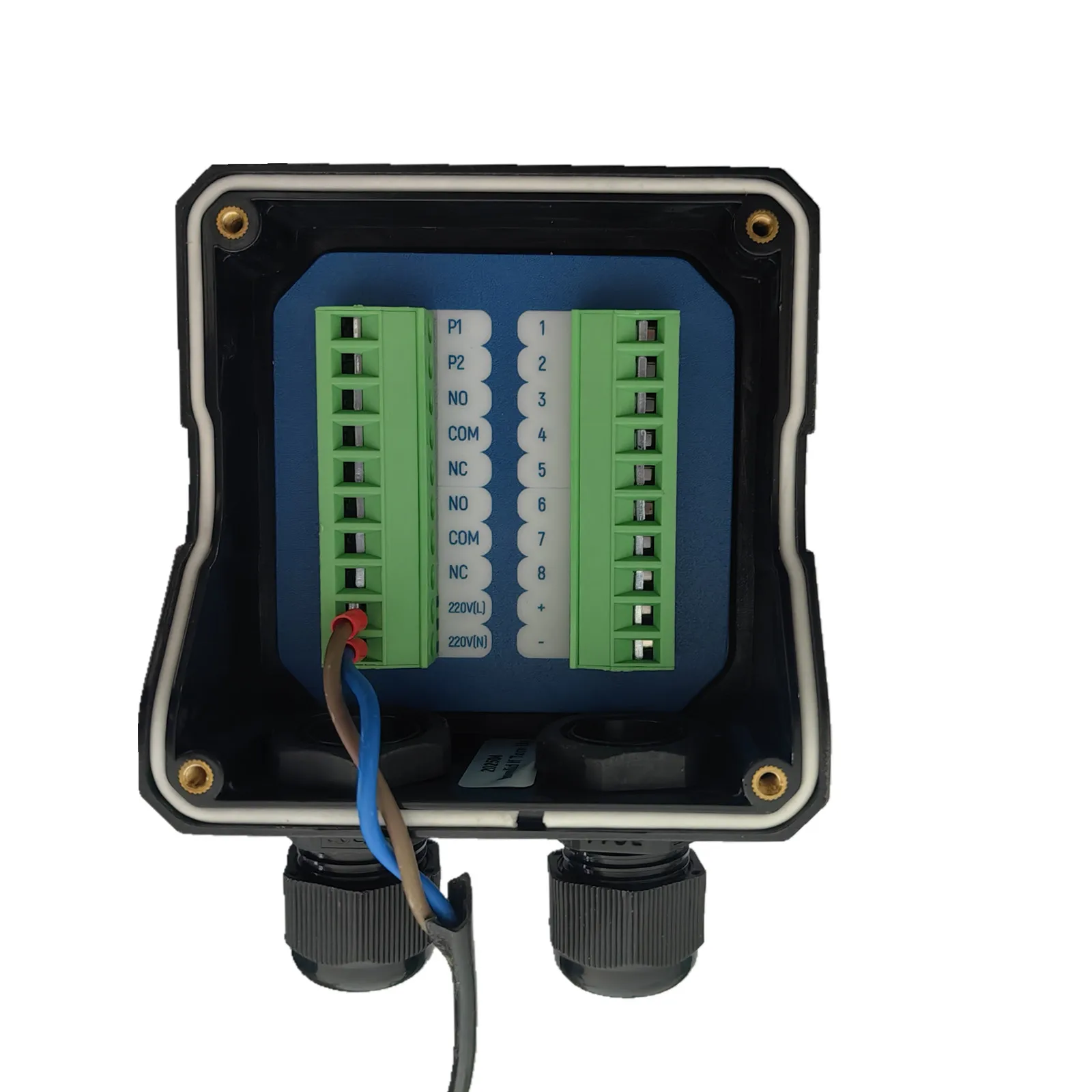

5. Control interface: two sets of ON/OFF relay contacts, which are divided into high-point and low-point alarm signals.

The third group of relays: automatic cleaning control function analog output.

6. Signal isolated output: optocoupler isolation protection 4~20mA signal output.

7. Relay: The relay hysteresis is arbitrarily set, and the relay load is 3A 220VAC/24VDC.

8. Working conditions: ambient temperature is 0~60°C, relative humidity ≤90%.

9. Output load: Load <500Ω (0-10mA), load<750Ω (4-20mA).

10. Working voltage: 220VAC10%, 50/60Hz.

11. Size: 96×105×168 mm.

12. Opening size: 92×92mm.

13. Weight: 0.9Kg.

14. Protection level: IP65

Package content:

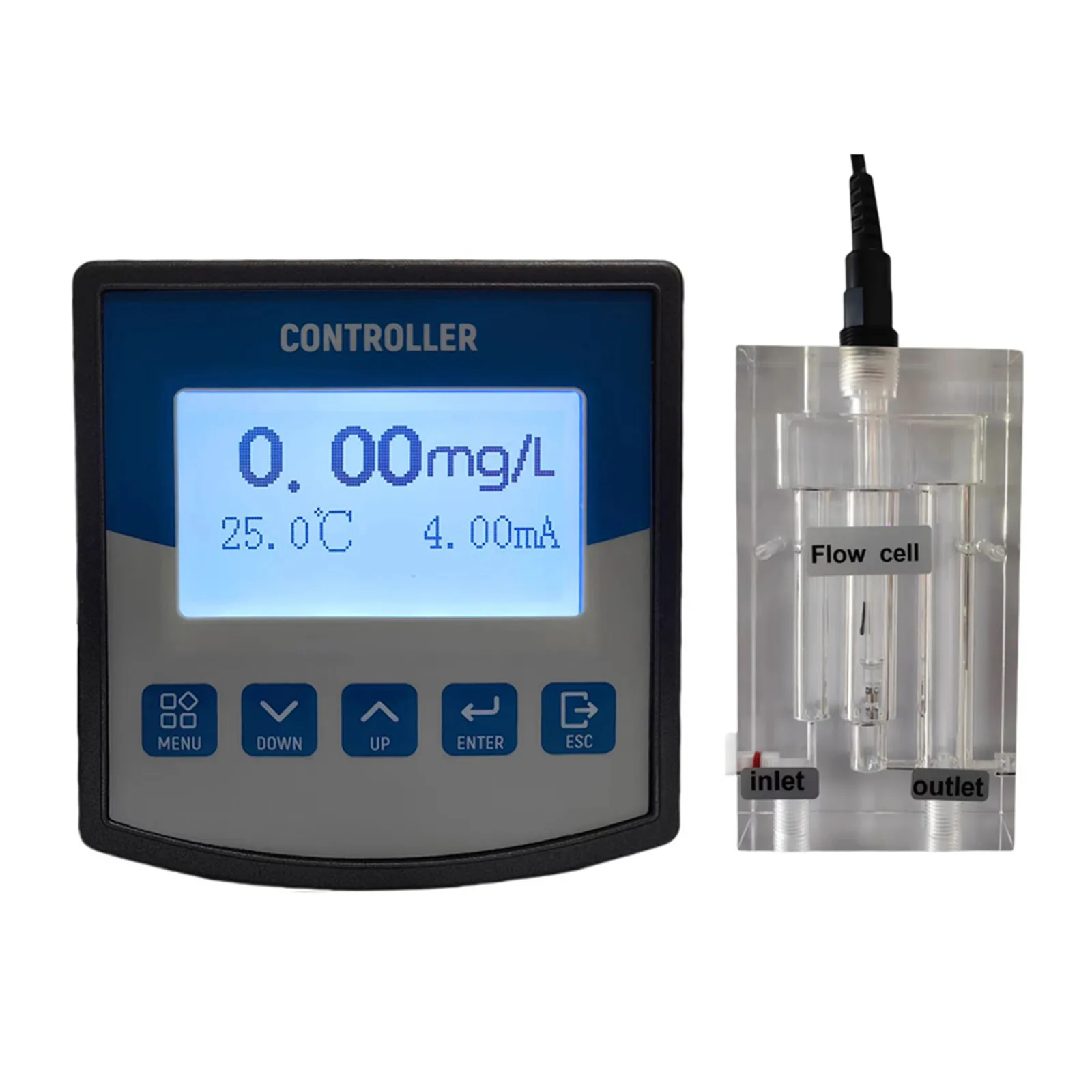

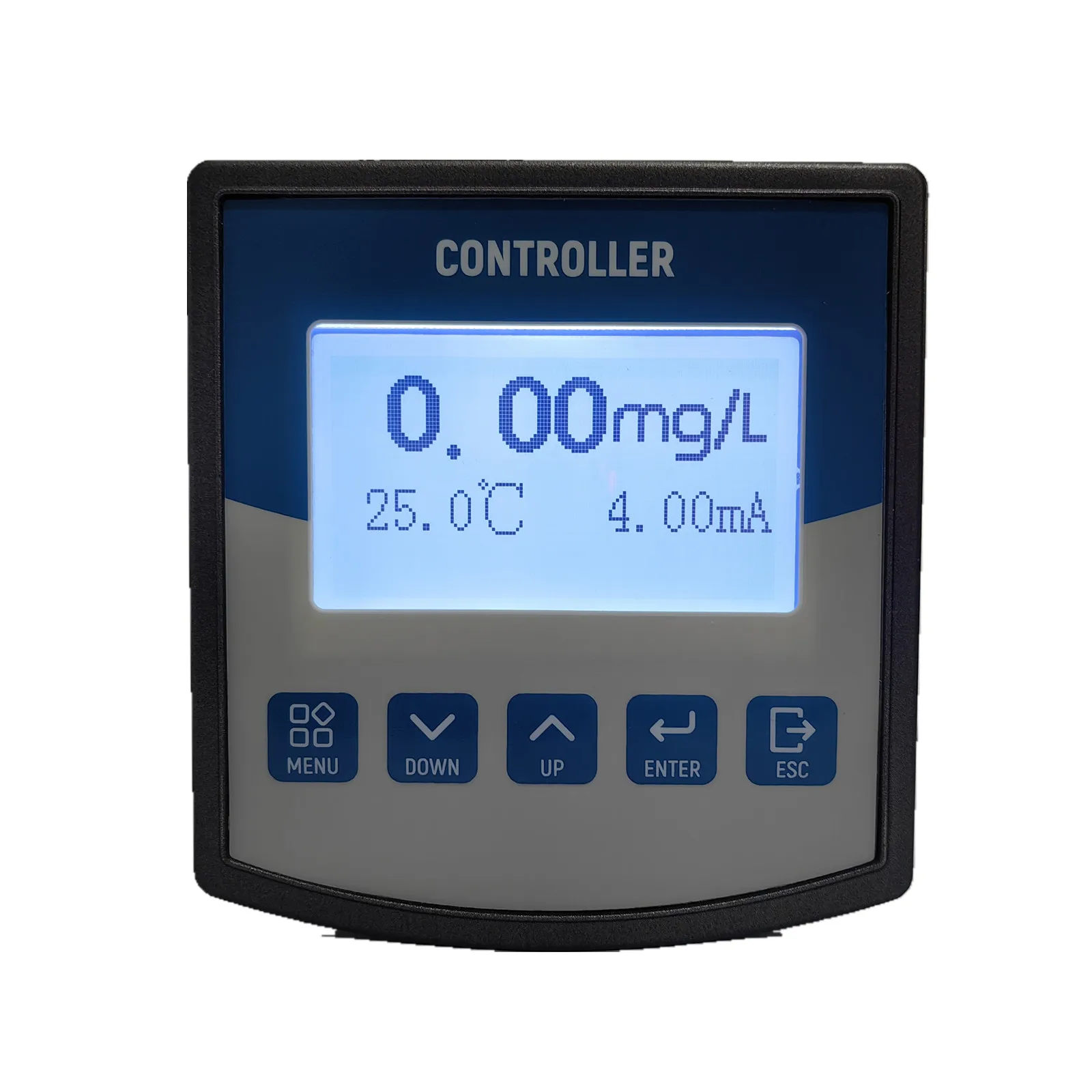

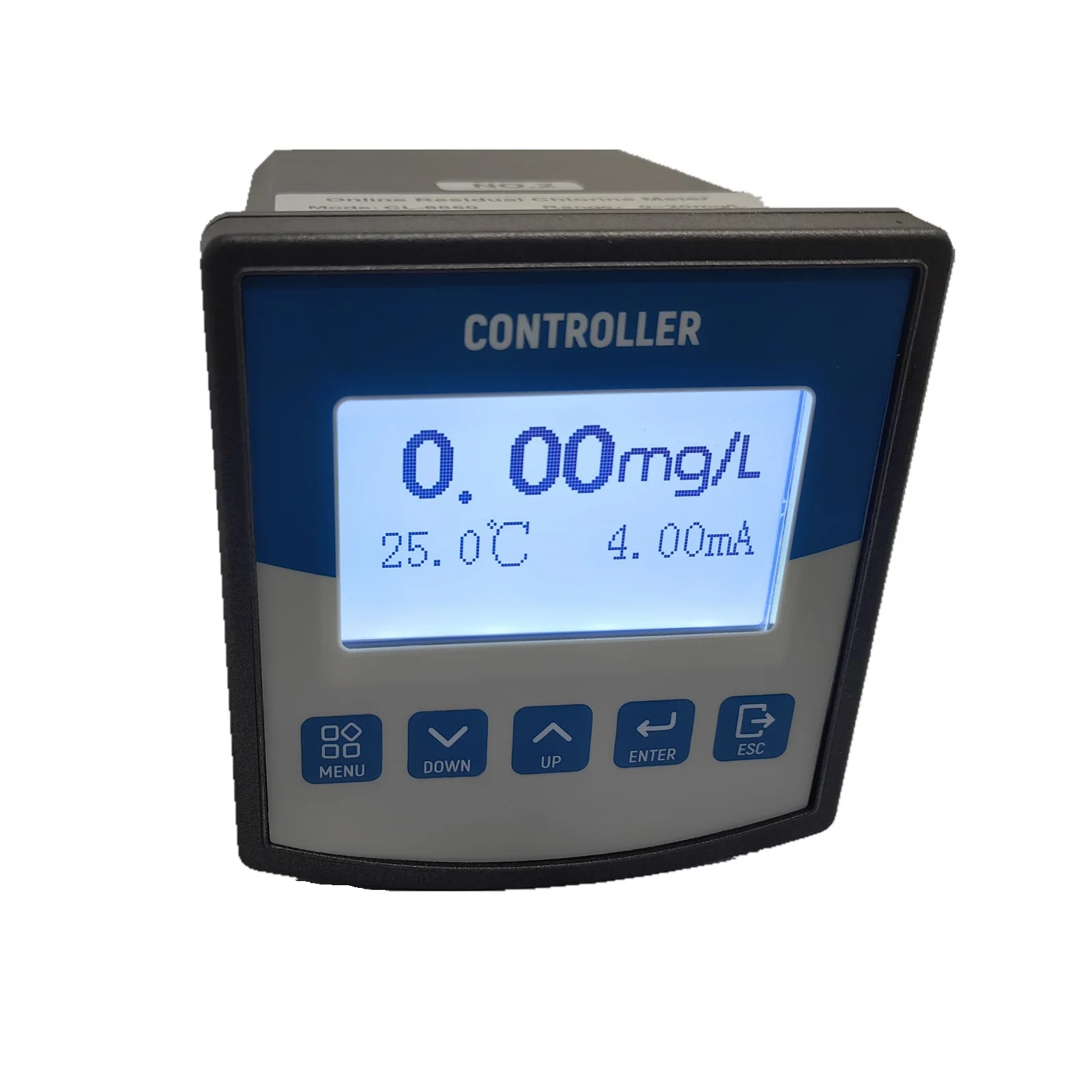

1. Constant voltage chlorine controller ×1

2. Residual chlorine sensor×1

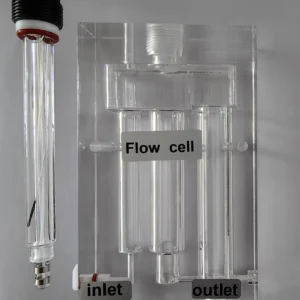

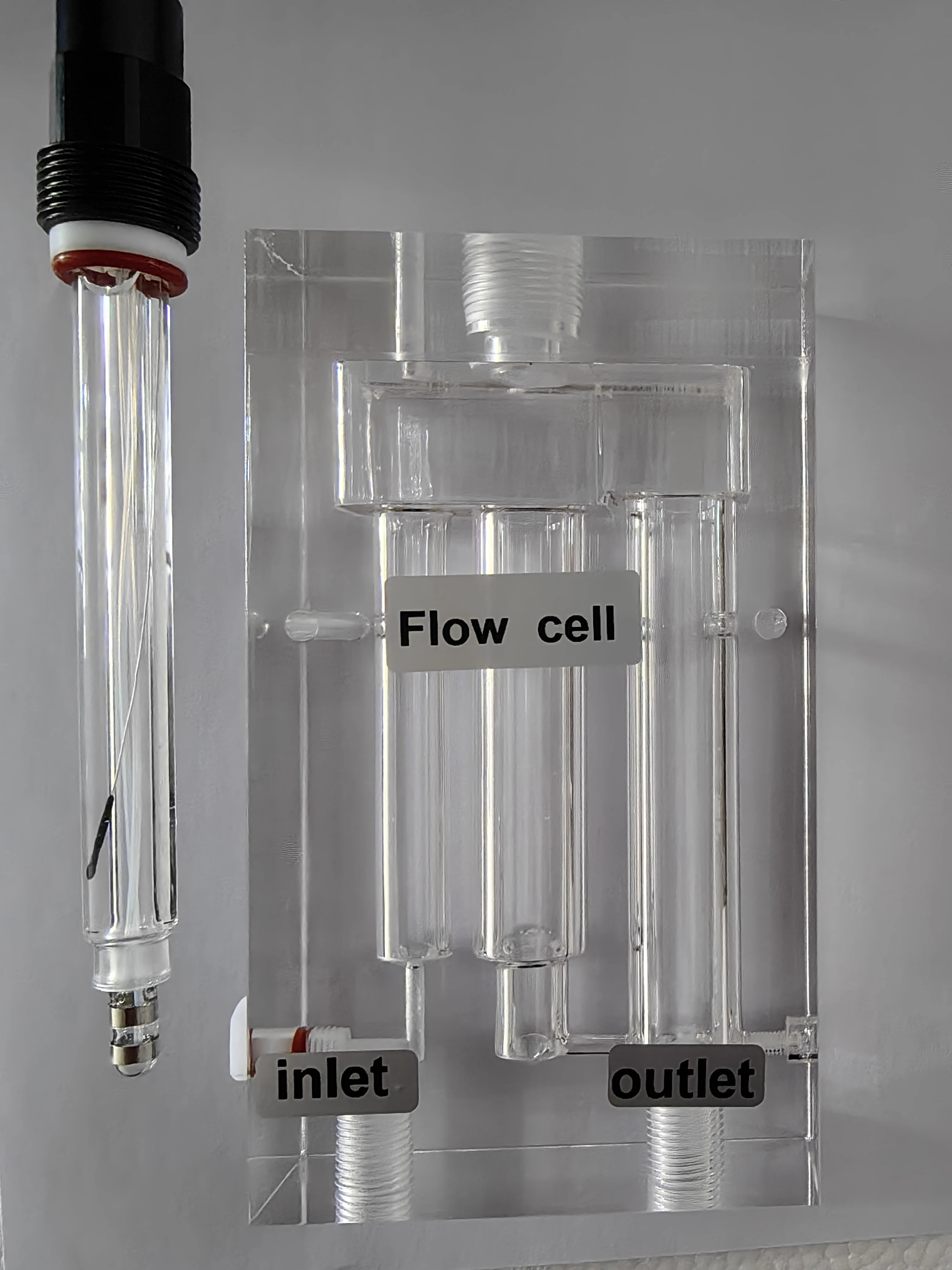

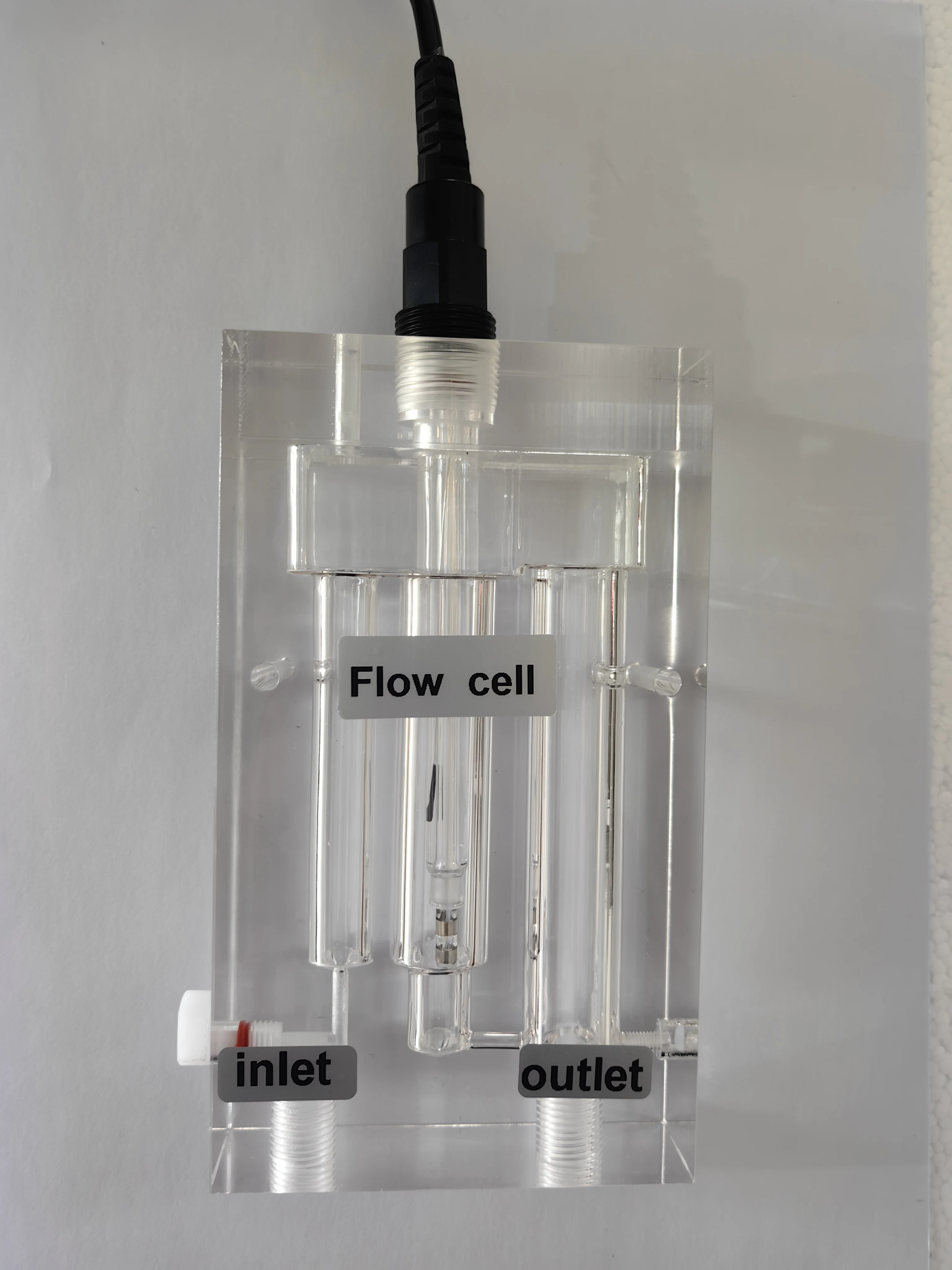

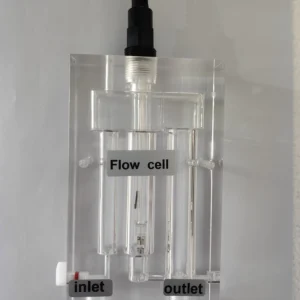

3. Flow sell ×1

4. Locking bars ×2

5. User manual ×1

6. Product certification ×1
